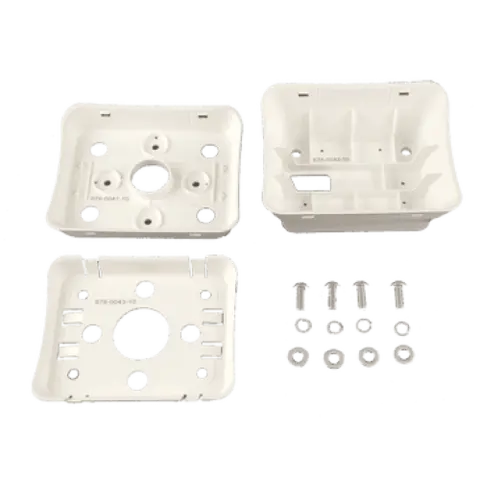

Surface mount kit for V200 Antenna.

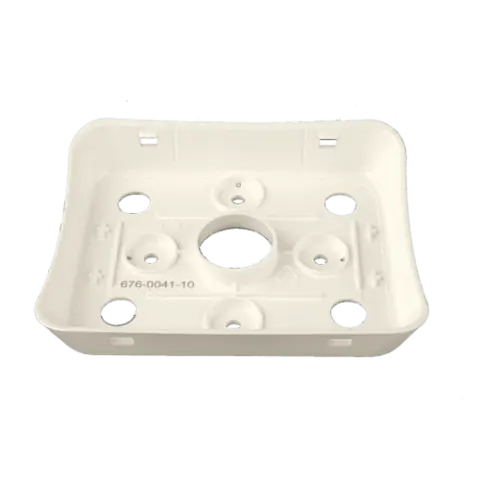

• Low profile adapter secured with screws from the top of the mounting surface. Cable exits through the mounting surface.

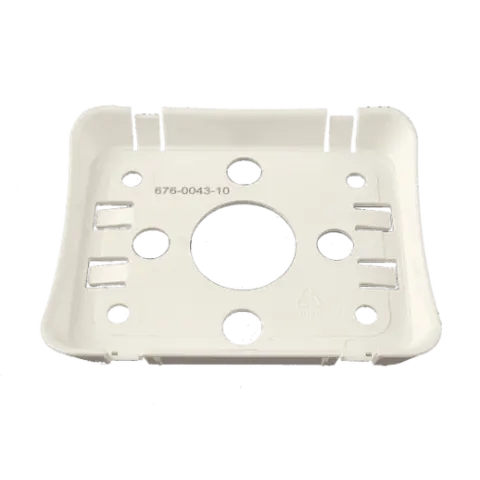

• High profile adapter secured with screws from the top of the mounting surface.
• Secure the upper adapter to the V200 using the supplied mounting hardware. Tighten to atorque of 11 - 13 Nm (8 - 10 lbs-ft). The maximum thread depth engagement must be no more than 12 mm (0.50“).
• Use the lower part of the adapter as a template and mark and drill holes (x1 - x4) for the screws.For the low profile adapter (A) where the cable exits through the bottom, also mark and drilla hole for the cable. For the high profile lower adapter (B) where the cable exits above themounting surface, no cable hole is required.
• Route the cable through the adapter and secure the lower adapter to the installation surface. Tighten to a maximum torque of 13 Nm (10 lbs-ft).
• Connect the NMEA 2000 drop cable to the V200 and place the V200 assembly into the loweradapter so that the four latches snap into place.
• To remove the V200, press in the clips on one side, at which point the V200 can easily be
