2kW bredbåndssvinger for utvendig skrogmontasje. Passer til ekkolodd JFC-180BB fra JRC (utgått).

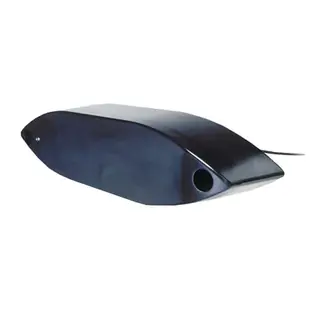

Varenummer 41-442-1-030 er 2kW bredbåndssvinger fra Airmar med produktnavn R109 LH. Svingeren er laget for utvendig skrogmontasje i glassfiber eller tre og passer bra til JRC sitt ekkolodd JFC-180BB. Kabellengde 12m.
Frekvensområder 38-75 kHz og 130-210 kHz. Innebygd temperatursensor.
Funksjonalitet (fra produsent)
- Depth and fast-response water-temperature sensing
- 2 kW of power for excellent deep-water performance
- Low frequency: 38 to 75 kHz
- 19° to 10° port-starboard beamwidth
- 10° to 5° fore-aft beamwidth
- Maximum depth of 1829 m (6000')
- High frequency: 130 to 210 kHz
- 8° to 4° beamwidth
- Maximum depth of 457 m (1500')
- 117 kHz of total bandwidth from one transducer
- Covers popular fishing frequencies of 50, 60, and 200 kHz plus everything else in the bandwidth
- Urethane housing with fairing for optimal performance
- Also available as pocket/keel/welded-tank (PM111LH) and in-hull (R111LH) mounts
- Patented Xducer ID® technology
Spesifikasjoner
- Power Rating: 2 kW
- Max Deadrise Angle: 22°
- Housing: Urethane
- Functions: Depth, Temperature
- Hull Material: Compatible w/ all hull materials
- Max Vessel LOA: 12 m (40') and above
- Mounting Style: Thru-Hull
- Acoustic Window: Epoxy/urethane
- Common Use: Fishing, Commercial Fishing
- High Frequency: 130-210 kHz
- High Frequency Beamwidth: 8°-4°
- Low Frequency: 38-75 kHz
- Low Frequency Beamwidth: 10°x19°-5°x10°
- Max Deadrise: Up to 22°
- Max Depth: Low frequency- 1829 m (6000'), High frequency- 457 m (1500')
- Retractable housing: No
- Single or Dual Frequency: CHIRP-Ready Dual-Band
- Tilted Element: No
- Vekt: 15.1 kg
